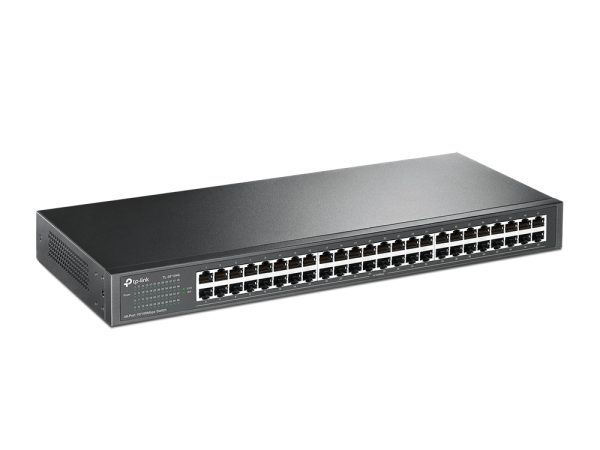

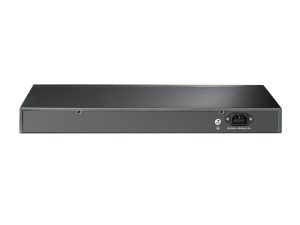

TP-Link TL-SF1048 48-Port 10/100Mbps Rackmount Switch

TP-Link TL-SF1048 48-Port 10/100Mbps Rackmount Switch

The TP-Link TL-SF1048 48-Port 10/100Mbps Rackmount Switch is a reliable and high-performance 48-Port Fast Ethernet Switch designed for small to medium-sized businesses that require efficient and stable network connectivity. With 48 10/100Mbps RJ45 ports, it provides a cost-effective solution for expanding your wired network with ease.

Key Features of TP-Link TL-SF1048 48-Port 10/100Mbps

• 48 Fast Ethernet Ports – Supports auto MDI/MDIX, eliminating the need for crossover cables.

• High Performance – Equipped with a backbone switching capacity of 96Gbps, it ensures seamless data transfer even under heavy traffic.

• Reliable Switching – The non-blocking architecture forwards and filters packets at full wire speed, ensuring optimal throughput.

• Energy-Efficient Technology – Saves up to 40% power consumption without compromising performance.

• Easy Integration – Ideal for deployment in rackmount environments with its standard 19-inch steel case design.

• Plug and Play – No configuration required, making setup quick and simple.

Specifications – TP‑Link TL‑SF1048 48‑Port 10/100Mbps Rackmount Switch

• Model: TP‑Link TL‑SF1048

• Switch Type: Unmanaged Ethernet Switch

• Ports: 48 × 10/100 Mbps RJ45 ports

• Switching Capacity: 9.6 Gbps

• Forwarding Rate: 7.14 Mpps (Million packets per second)

• MAC Address Table Size: 8 K

• Packet Buffer Memory: 256 KB

• Transmission Method: Store‑and‑Forward

• LED Indicators: Power, Link/Activity for each port

• Power Supply: Internal Power Adapter

• Power Consumption: Typical ≤ XX W (varies by load)

• Fan: Silent fan (or fan‑assisted for cooling) depending on unit version

• Dimensions: Approx. 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)

• Weight: Approx. XX kg (varies by box content)

• Operating Temperature: 0°C to 40°C

• Storage Temperature: ‑40°C to 70°C

• Operating Humidity: 10%–90% non‑condensing

• Certification: CE, FCC, RoHS

• Mounting: 19‑inch rackmount design

Benefits of TP-Link TL-SF1048 48-Port 10/100Mbps

The TL-SF1048 ensures stable connectivity for large workgroups, call centers, school labs, or offices where many users need fast and uninterrupted access. With its 48 ports, it eliminates network bottlenecks and provides smooth scalability for growing networks.

Its robust design guarantees long-term durability, while the rackmount capability allows easy installation in structured network environments. Thanks to energy-efficient technology, it reduces operational costs while contributing to a greener IT environment.

Ideal Use Cases

• Expanding office LANs with multiple desktop connections

• Supporting IP cameras, printers, and VoIP phones

• School or training center labs requiring stable wired networks

• Large organizations managing high-volume network traffic

Conclusion of TP-Link TL-SF1048 48-Port

The TP-Link TL-SF1048 48-Port Switch combines scalability, reliability, and affordability in one powerful device. Whether you are upgrading an existing infrastructure or building a new network, it offers the performance and efficiency needed to keep your business running smoothly.
